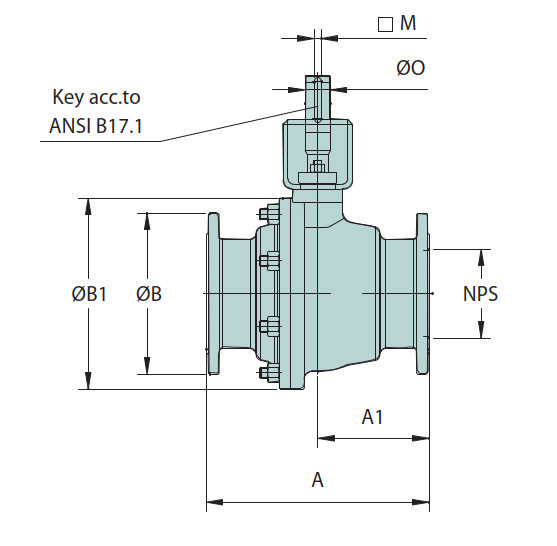

Neles M2 series-Floating Ball Valve
Here is the short description of the product.
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Specifications for Neles M2 series-Floating Ball Valve
Applicable Valve Standard | |
---|---|
Design Standard | ASME B16.34 |
Valve Vendor | |
Manufacture | Neles |
Product Brand | Neles |
Valve Series | M2 |
Product Version | A |
Pipe Connection | |
Valve Size | 1 or 2 or 3 or 4 or 6 or 8 or 10 or 12 or 11/2 |
P/T | CL150 or CL300 |
Face to Face | ASME B16.10 |
End Connection Type | Double Flange |
Flange | ASME B16.5 |
Flange Face | RF-Raised Face |
Flange Drilling | ASME B16.5 |
Valve General Infomation | |
Valve Type | Ball Valve |
Bore Type | Full Bore |
Max Pressure Drop | Full Pressure Drop |
Valve Material | |
Body Material | ASTM A351 Gr.CF8M or Duplex ASTM A995 Gr 4A |
Ball Material | ASTM A351 CF8M or Duplex ASTM A995 Gr 4A+Hard Chrome Coated |
Seat Material | PTFE or RPTFE |
Shaft Material | SST 329 or UNS S31254 |
Packing Material | Graphite or PTFE |
Seal Material | Graphite |
Bearing Material | Glass Backed TFE |
Bolting Material | ASTM A193 Gr. B8M |
Trim | |
Seat Design | Soft Seat or Metal Seat |
Seat QTY. | 2pcs |
Ball Valve Specific | |
Ball Coating | No Coating |
Contruction Type | Floating Ball |
